Standards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
General
Media support:
- 100Base-TX Cat5 UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
Ports:
- 1 RJ45 1000 Mbps input port
- 1 RJ45 1000 Mbps data and power output port
- 1 power input connector for external power adapter
Protection functions:
- Short circuit protection for short GND
- Overload protection for currents over 1.8 A
- High-voltage protection for output voltage exceeding 58 V
Compatibility - general: all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices
Supported INTELLINET NETWORK SOLUTIONS products:
- Wireless 300N Access Points (524735, 524711, 525251)
- IEEE 802.3at PoE+ Splitter (560443)
- Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-IRV)
Certifications: FCC Class B Part 15, CE 89/336/EEC
RJ45 Output Connector Pinout (Data + Power)
Pin 1: Rx+ (data receive) and feeding power [+]
Pin 2: Rx- (data receive) and feeding power [+]
Pin 3: Tx+ (data transmit) and feeding power [-]
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit) and feeding power [-]
Pin 7: NC (not connected)
Pin 8: NC (not connected)
LED
PoE, Power
Power
Input: 100 – 240 V AC, 50 – 60 Hz
Power consumption: 42 watts (maximum)
Environmental
Metal housing
Dimensions: 154 (L) x 72 (W) x 35 (H) mm (6.0 x 2.81 x 1.37 in.)
Weight: 0.79 kg (1.73 lbs.)
Operating temperature: 5 – 45°C (41 – 113°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -20 – 55°C (-4 – 131°F)
Package Contents

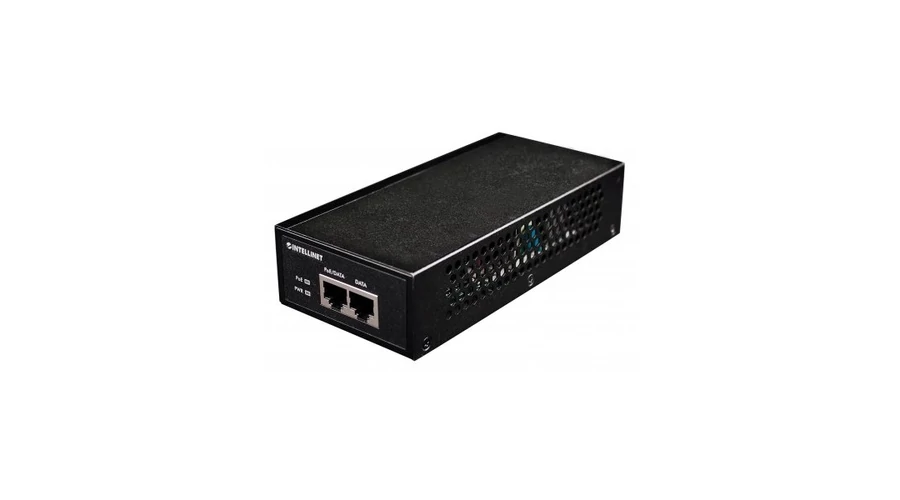

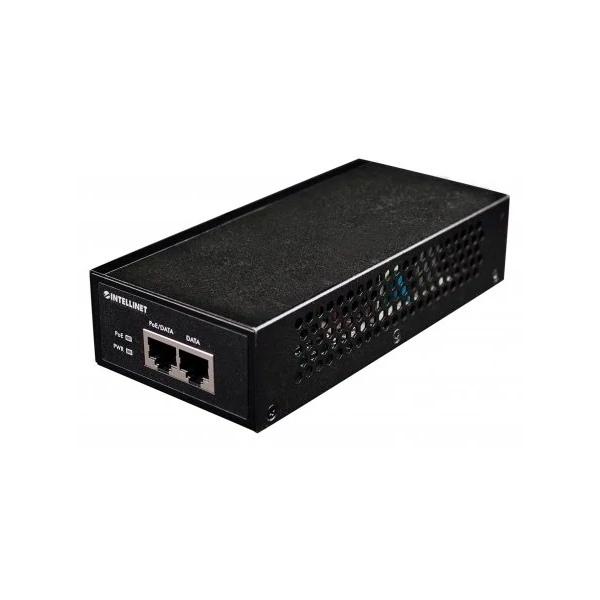

1-Port Gigabit High-Power PoE+ Injector
Power cable
Installation material (2 screws and drywall anchors)
Instructions
